Open Channel UV-C Wastewater Disinfection System
Features and Advantages
High-efficiency broad-spectrum disinfection: UV-C technology destroys microbial DNA, providing broad-spectrum inactivation of bacteria, viruses, etc.
Low-pressure mercury lamp system: Low power consumption, high efficiency, long service life, energy-saving – low operating cost
Imported key components: World-class low-pressure high-output UV lamps; effective UV output ≥40%
Long-life design: Rated lamp life ≥12,000 hours; maximum service life ≥16,000 hours
High-transmittance quartz sleeve: Transmittance ≥90%; IP68 protection rating; multi-seal design – safe and reliable
Intelligent control system: Power adjustable from 50% to 100%; supports Siemens, Schneider, Allen‑Bradley PLCs and other brands – strong compatibility
Automatic mechanical cleaning: Compressed-air driven; EPDM cleaning ring – avoids sleeve damage and reduces manual intervention
Non-powered overflow weir / non-powered flap gate / bottom-hinged electric weir gate: Flexibly adapts to different effluent conditions
Technical Specifications
| Parameter | Description |
| Lamp type | Open low-pressure mercury lamp system, imported lamps |
| Single lamp power | 320W |
| UV output efficiency | ≥40% |
| Rated lamp life | ≥12,000 hours (maximum service life >16,000 hours) |
| Quartz sleeve transmittance | ≥90% |
| Protection rating | IP68 |
| Ballast power factor | 0.98 |
| Certification | CE, UL |
| Cooling method | Air-cooled |
| Water level control method | Non-powered overflow weir / non-powered flap gate / bottom-hinged electric weir gate |
| Control system | Three-phase balanced design; HMI (Human‑Machine Interface) monitoring |
| Cleaning method | Compressed-air driven automatic mechanical cleaning |
Application Case
University Town Wastewater Treatment Project
Project overview: The University Town wastewater treatment project required advanced disinfection technology to ensure effluent quality meets standards and to protect regional water environment safety.
Solution: This project utilizes Fusshia Technology's large-scale ozone generators and UV disinfection system as a key step in advanced wastewater treatment, effectively improving effluent quality and meeting stringent environmental requirements.

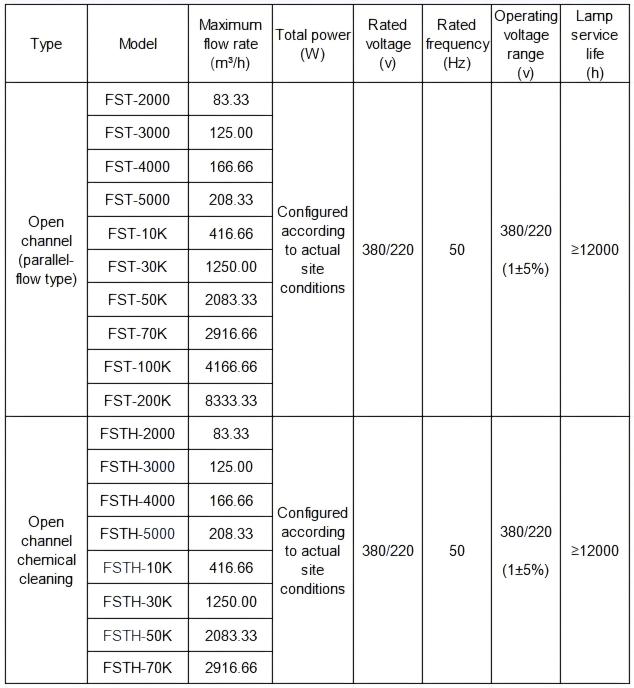

UV-C Disinfection Equipment Performance Technical Data Sheet
