Pipeline UV-C wastewater disinfection system
Pipeline UV-C wastewater disinfection system
Efficient, Stable, and Intelligent Wastewater Disinfection Solution
Based on internationally advanced UV‑C disinfection technology, Fujian Fusshia Technology Co., Ltd. has independently developed the Pipeline UV-C wastewater disinfection system. It is widely used in municipal sewage, industrial wastewater, medical wastewater, and other fields, offering advantages such as broad‑spectrum germicidal action, no secondary pollution, and low operating cost.
Core Technology
Principle of UV‑C Disinfection
UV‑C energy is absorbed by microorganisms, damaging their DNA/RNA structure and preventing replication, thereby achieving fast and efficient physical disinfection.
Broad‑spectrum inactivation of bacteria, viruses, algae, etc. No chemical residues.
Lamp System (Low‑Pressure Mercury Lamp)
World‑class low‑pressure, high‑intensity UV lamps, originally imported
Single lamp power: 40 W – 320 W
Effective UV output: ≥40%
Rated lifetime: >12,000 hours; maximum service life: >16,000 hours
Lamp type: low‑pressure mercury lamp, single wavelength, high efficiency, low power consumption, low operating cost
Quartz Sleeve System
Manufactured to international fused quartz standards, low OH content, high temperature resistance
Transmittance: ≥90%
Lamps are multiply sealed inside the sleeves; protection rating: IP68
Suitable for mercury lamps and other quartz material lamps

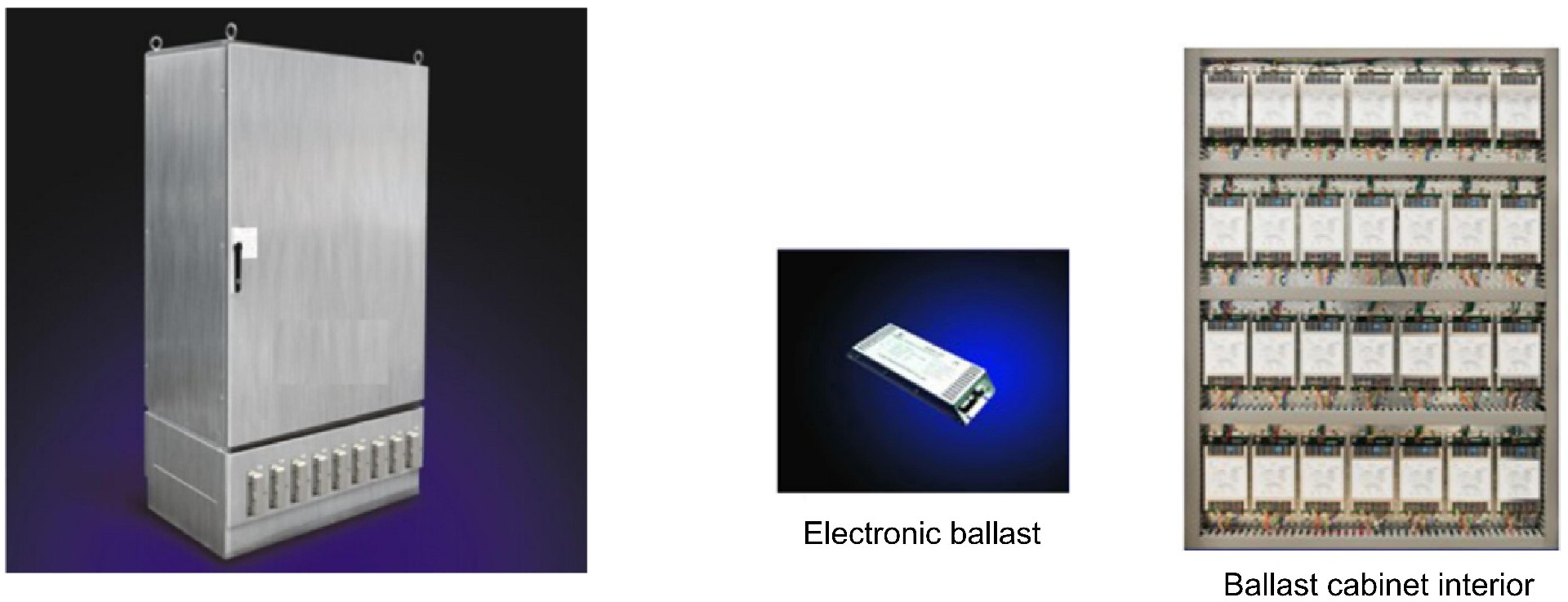

Electronic Ballast
Power factor: 0.98
Output power adjustable range: 50% – 100%
CE certified and UL certified
Standalone cabinet installation, easy maintenance, air‑cooled, long service life
